Day 2

09:00 Arduino Introduction
10:00 Analog IO
11:00 Sketching Circuits
12:00 Break
13:00 More Sensors
14:00 Whatever you like
15:00 Introduction to our Topic
16:00 Brainstorming Ideas

"Hello, Computer!"

II



Quelle: UTEXAS

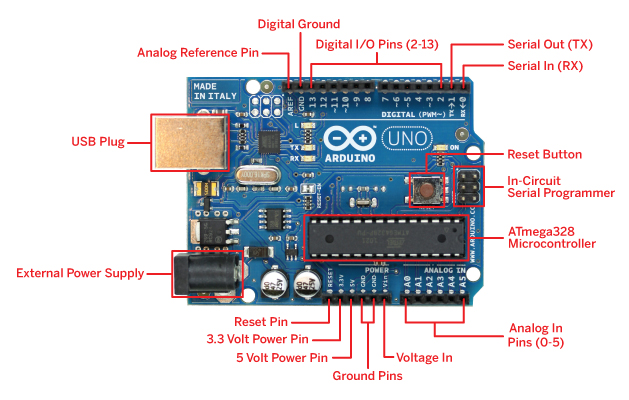

Arduino


Image Source: ArduinoArts

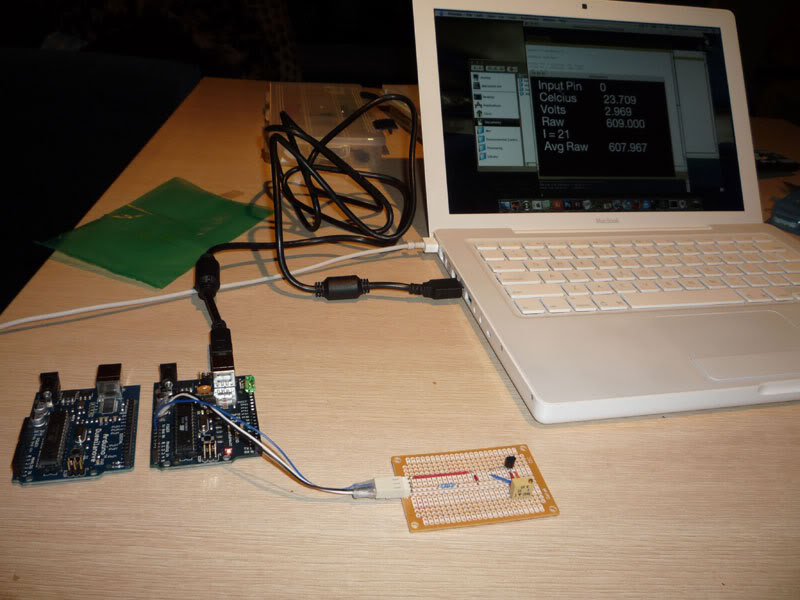

Arduino — Connected


Image Source: SirLeech

Arduino provides (some) power

Arduino provides (some) power

Digital Input/Output

Digital Output

Blinking LED

void setup() {
	pinMode(12, OUTPUT);	// Make pin an output for us
}
void loop() {
	digitalWrite(12, HIGH);	// Set pin to be "+" (on)
	delay(500);
	digitalWrite(12, LOW);	// Set pin to be "-" (off)
	delay(500);
}

Digital Output

High Load!

Digital Output

Transistor / MOSFET

Digital Output

Transistor / MOSFET

Digital Output

Transistor / MOSFET

Digital Input

Pull a pin "up" (+)

void setup() {
	pinMode(2, INPUT);	// Make pin an input for us
}
void loop() {
	value = digitalRead(2);	// Read what's on that pin
}

Digital Input

Pull a pin "down" (-)

void setup() {
	pinMode(2, INPUT);	// Make pin an input for us
	digitalWrite(2, HIGH);	// Activate internal pull-up
}
void loop() {
	value = digitalRead(2);	// Read what's on that pin
}

Digital Input

Using a Bread Board

Analog Input/Output

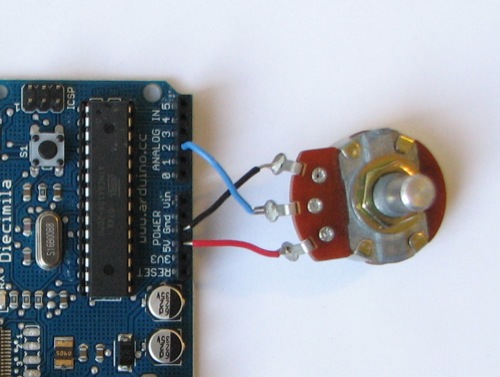

Arduino Analog Input

int potPin = 2;	// select the input pin for the potentiometer
int ledPin = 13;	 // select the pin for the LED
int val = 0;	 // variable to store the value coming from the sensor

void setup() {
	pinMode(ledPin, OUTPUT);	// declare the ledPin as an OUTPUT
}

void loop() {
	val = analogRead(potPin);	// read the value from the sensor
	digitalWrite(ledPin, HIGH);	// turn the ledPin on
	delay(val);		// stop the program for some time
	digitalWrite(ledPin, LOW);	 // turn the ledPin off
	delay(val);		// stop the program for some time
}

Analog Output

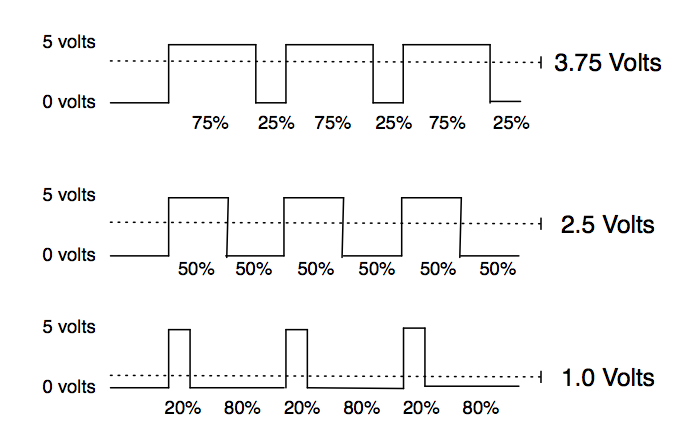

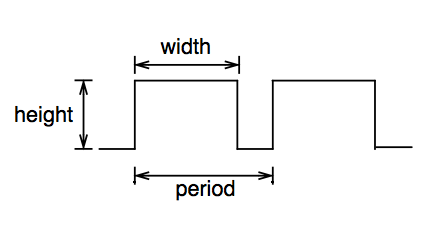

PWM — Pulse Width Modulation

Analog Output

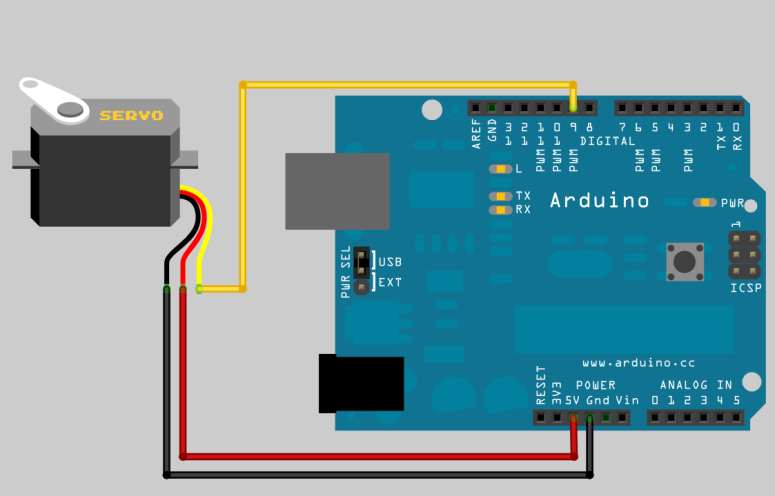

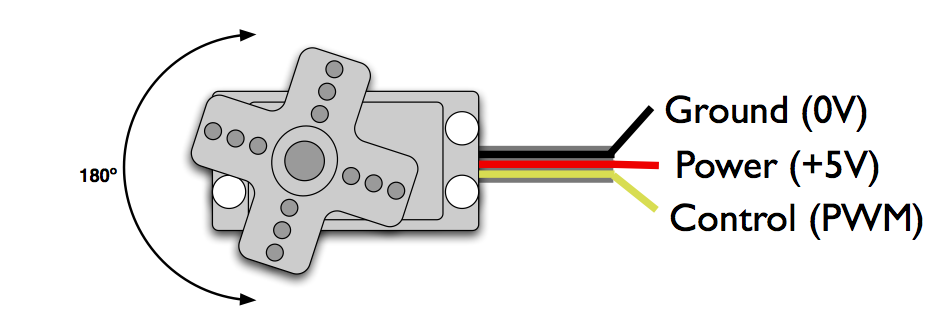

Analog Output: Servo

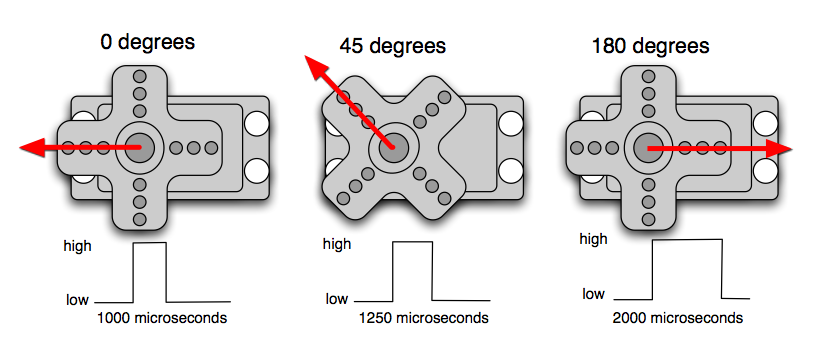

  • PWM freq is 50 Hz (i.e. every 20 ms)
  • Pulse width ranges from 1 to 2 ms
  • 1 ms = full anti-clockwise position
  • 2 ms = full clockwise position

Analog Output: Servo

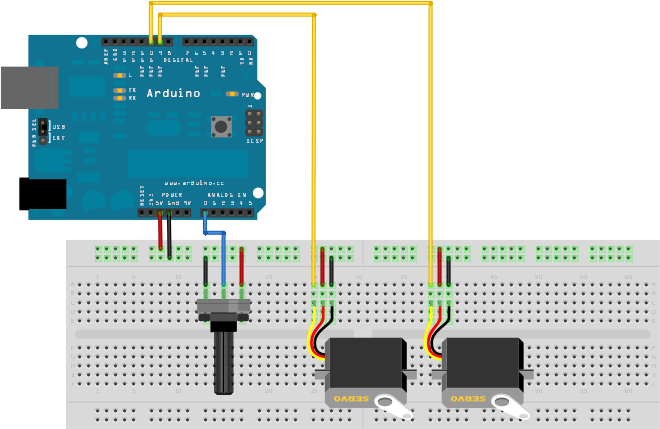

Analog Output: Servo

"Servos, Oida!"

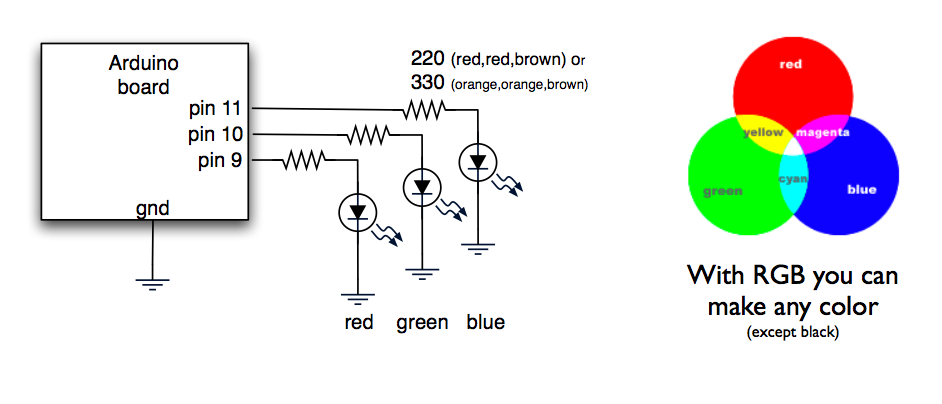

Analog Output: RGB LED

photo credits © todbot.com

Pins: R G − − B B
GND = Cathode = −

Motor ansteuern

Sketching Circuits

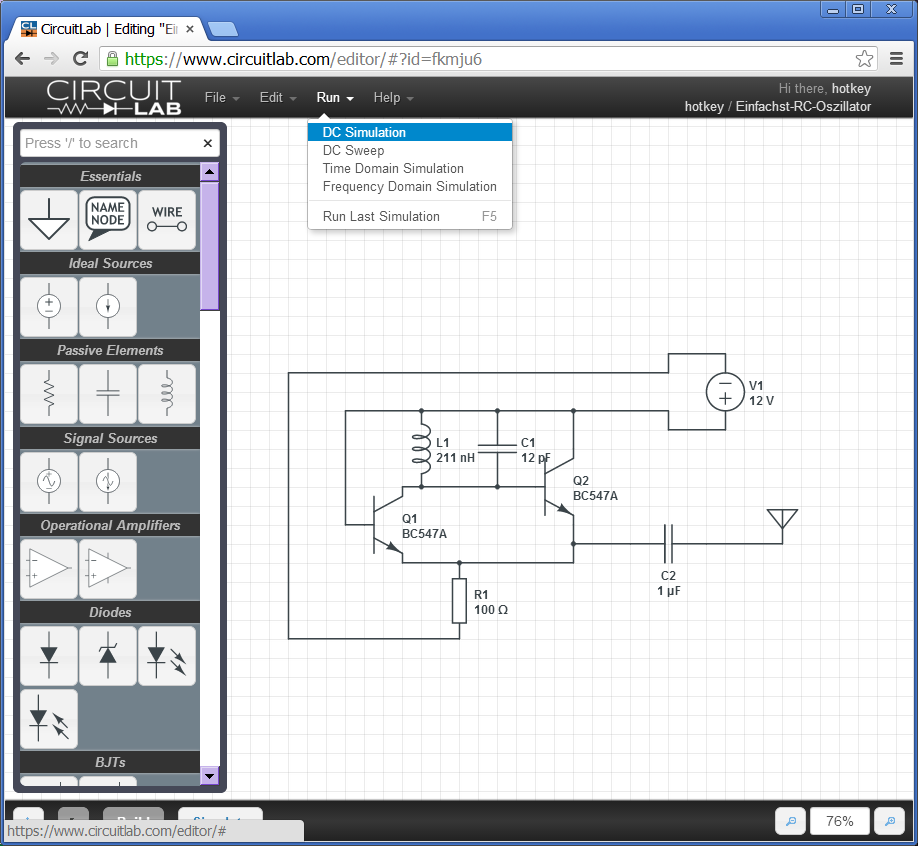

CircuitLab

https://www.circuitlab.com

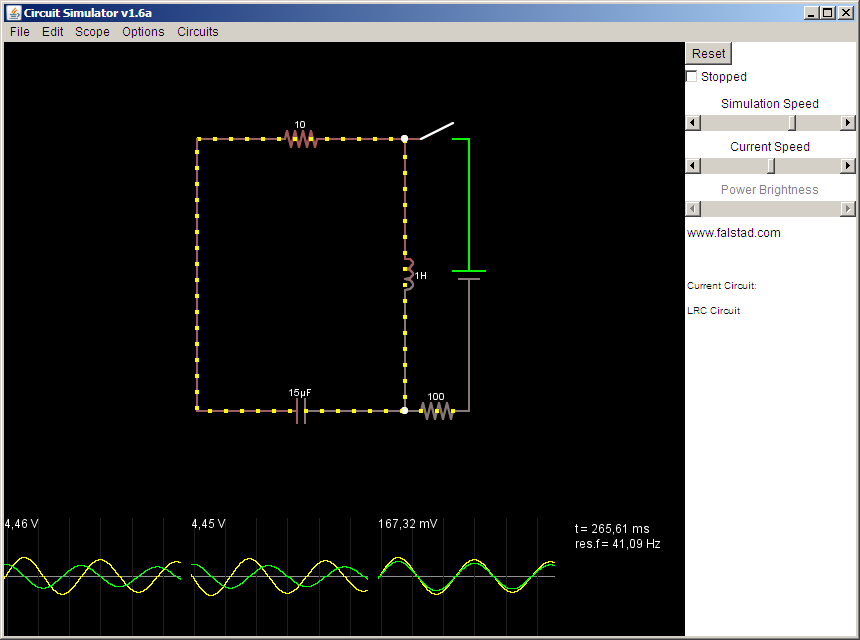

Circuit Simulator

http://www.falstad.com/circuit/

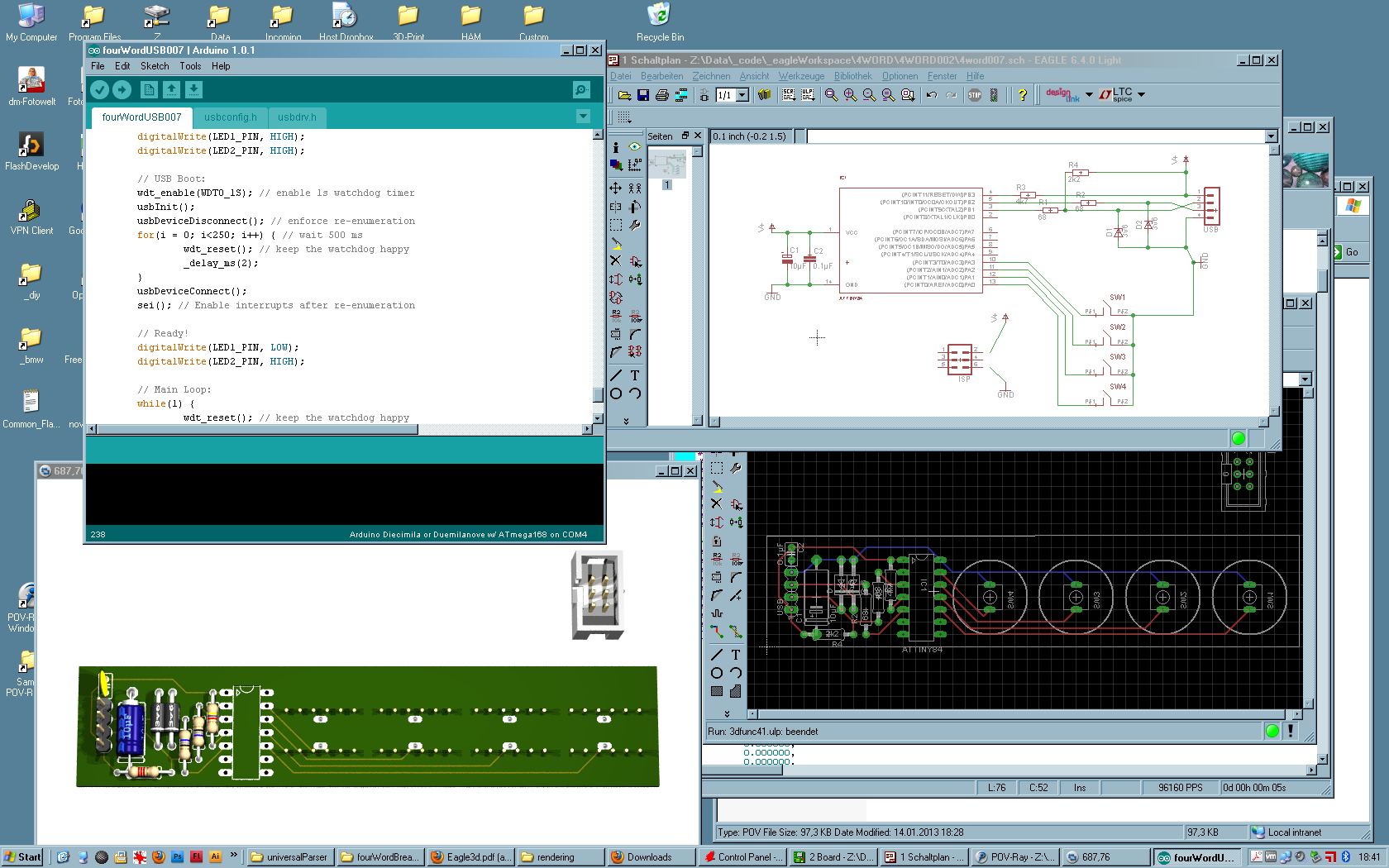

EAGLE

http://www.cadsoftusa.com/eagle-pcb-design-software/

Fritzing

http://fritzing.org/news/fritzing-gets-the-bends/

More Sensors

  • Light
  • Temperature
  • Distance (Infra Red, Ultra Sonic)
  • Magnetic Sensors (Reed, Hall-Effect)

Actuators

  • Motors
  • Servos, Steppers
  • Speakers
  • Solenoids
  • LEDs (RGB)
  • Piezos

Topic ...

Topic:

Music Instruments







Image Source: Engadget/Moogfest

Features

  • build a music INPUT and/or OUTPUT device
  • Generate sound digitally or physically
  • include MIDI Input/Output ports — inter-connect your projects!
  • final presentation: Concert!


Image Source: npr

Some Inspiration

Enhance!

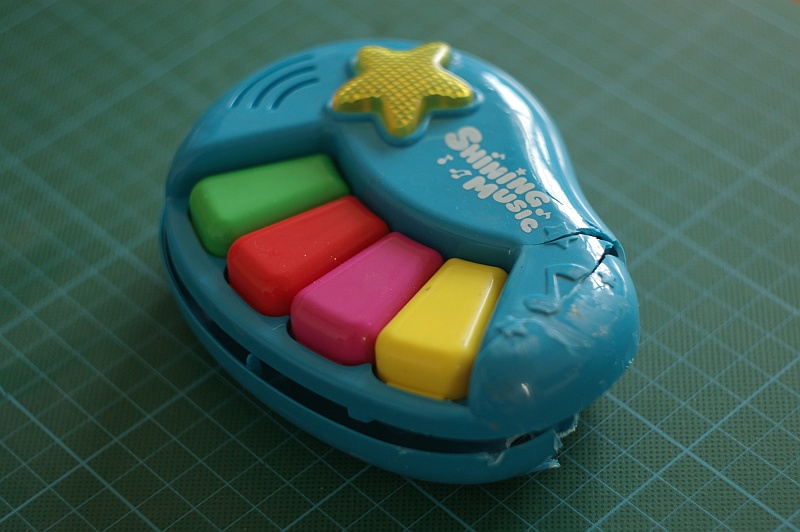

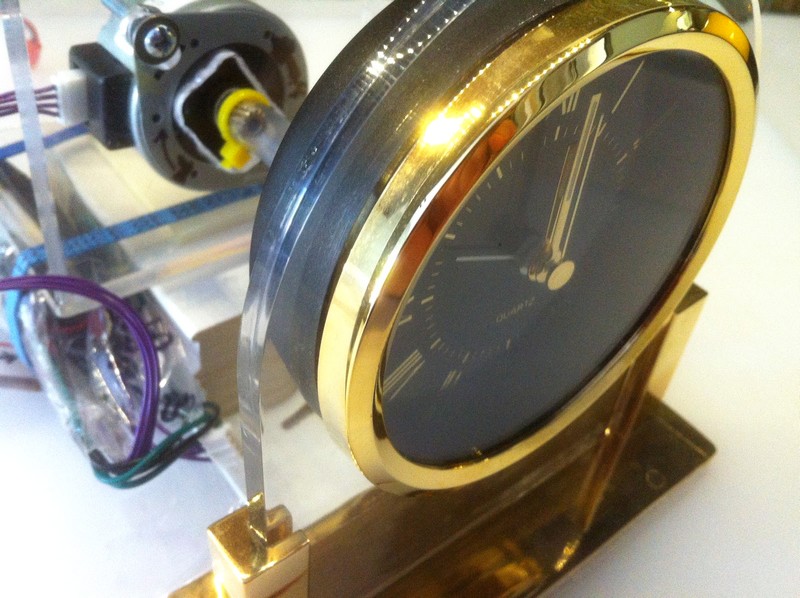

Re-Purpose!

Change Context!

Make Things Move!

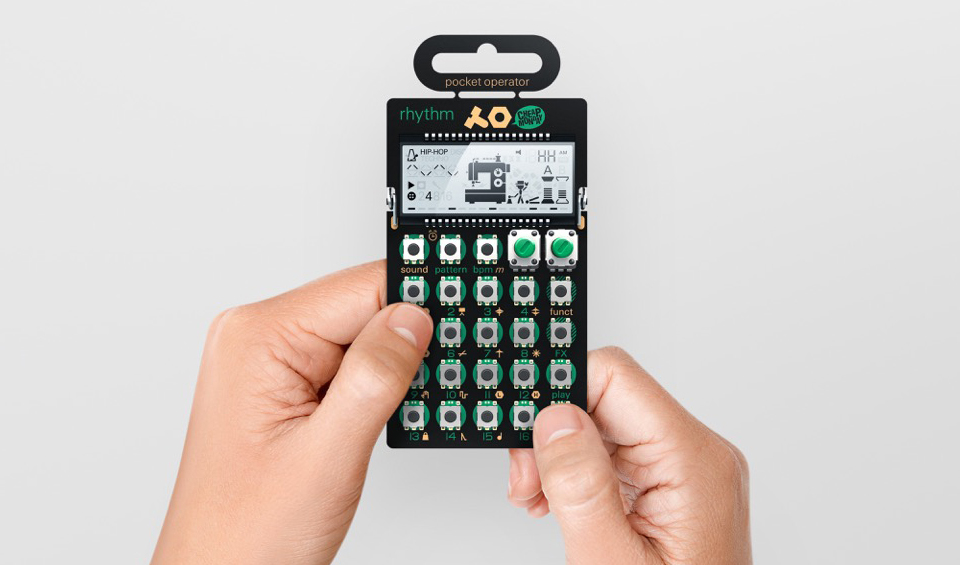

Example: Simple Synthesizers

Arduino MIDI | Auduino | NaV-1 | Mozzi Teenage Engineering

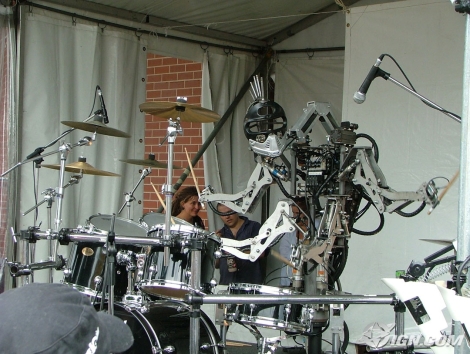

Example: Drum Robots

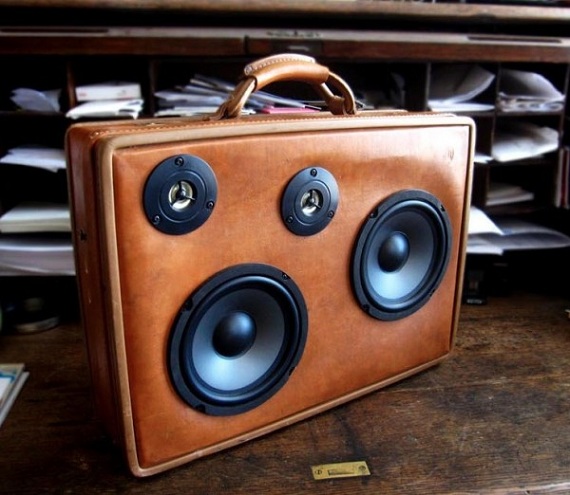

Lebmetal: Robot Drums

Example: Violin Robot

Video

Recommended Search Terms

  • Arduino Synth / DIY Synth
  • some-instrument-name playing robot
  • Arduino Mozzi Library
  • Arduino MIDI

Brainstorming!



















GIF by Robin Davey, http://robindavey.co.uk/

Brainstorming!




  • Project Name
  • Main Idea
  • Features
  • Sensors? Actuators?
  • Software? Complexity? Costs?
  • Plan B?


Raus an die frische Luft!

Image Source: Heinrich Kopp: Kinderreigen

Homework: Elaborate.


  • Present your final ideas on thursday.
  • Don't forget to document everything!

Shops for Electronic Parts

  • exp-tech.de
  • pollin.de
  • watterott.com
  • conrad.de
  • reichelt.de
  • elv.de
  • farnell.de
  • adafruit.com

MIDI Controller Tutorial

"MIDI-Controller selber bauen" by Götz Müller-Dürholt
